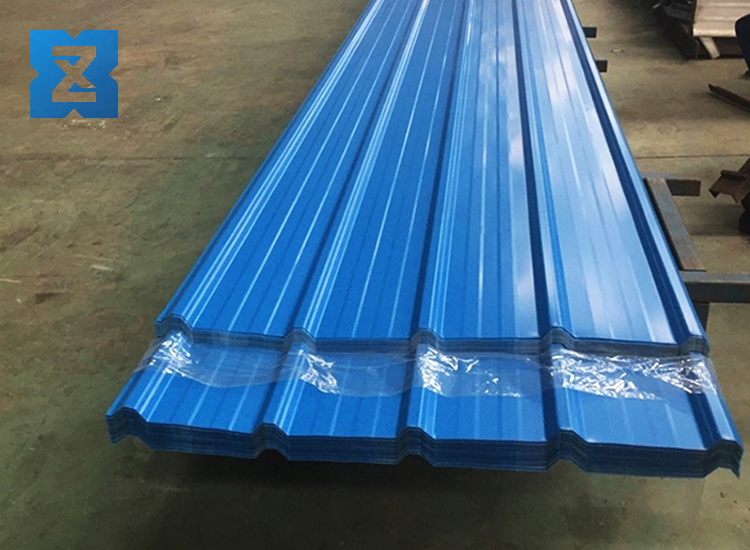

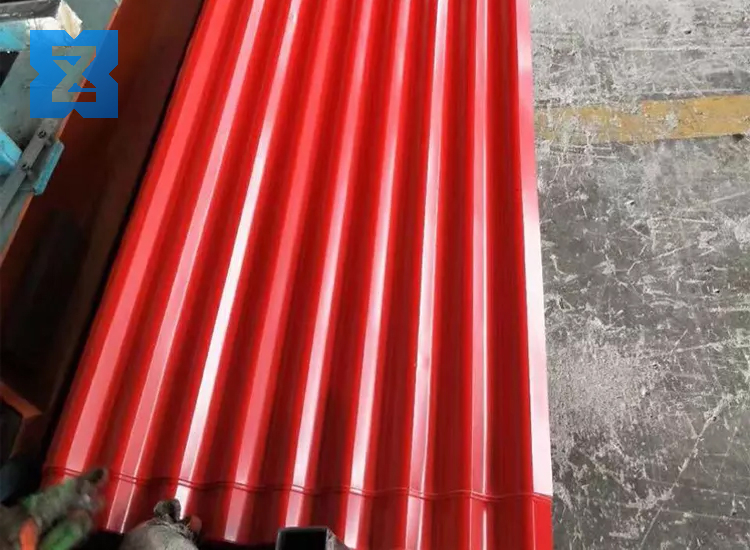

Color Coated Galvanized Corrugated Roofing Sheet
Roof sheet, also known as profiled steel rood tile, is a profiled plate made of color steel sheet or galvanized steel sheet or galvalume steel sheet, which is rolled and cold bent into various wave shapes. It is mainly applicable to the roof, wall and internal and external wall decoration of industrial and civil buildings, warehouses, special buildings and long-span steel structure houses. It has the characteristics of light weight, high strength, rich color, convenient and fast construction, earthquake resistance, fire prevention, rain proof, long service life and maintenance free.
+86 13310656379
admin@cn-zxsteel.com
Contact Us

◉ Product Details

Corrugated steel roofing sheets have been around for many years and are still popular today, giving a more traditional look, in fact corrugated steel roofing is the only cladding that should be used in conservation areas. We offer many different colours and galvanized roofing sheet.
color coated galvanized corrugated roofing sheet
Name  color coated corrugated roofing sheet
Material  SGCC,SGCH,JIS G3302,DX51D,DX52D,DX53D
Thickness0.10 -1mm
Width600-1100 mm
length 2-5 meters
ToleranceThickness: +/-0.02mm
 Width:+/-2mm
Color coatingZinc Coating: 30g/m2-275g/m2
 Color Coating:  Top:15-25µm / Back: 5-8 µm
Surface treatment  unoil,dry,chromate passivated, non-chromate passivated
Certification  ISO 9001-2008,SGS,CE,BV
Technique  Cold rolled—>hot dipped galvanizing—>Color Coated —> corrugated
Weight of each packageAs required
Depth of corrugated  from 15mm to 18mm
Pitch  from 75mm to 78mm
Colors  refer to RAL numbers or customer sample,common colors are sea blue, white grey and bright red.
Corrugated Sheet Raw  Galvanized steel, Aluzinc Steel, Aluzinc Pre-painted sheet and
Materials  Aluminium sheet.
Gloss  The gloss can changeable by Customers' Request.we can also do some High gloss.
Paint type  PE or PVDF
Standard  GB/T 12754-2006;ASTM A 755;EN 10169;JIS G 3312;AISI;BS;DIN
Grade CGCC/SGCC/SGCH/SPCC
Yield strength 550MPA/As required
Tensile strength  600MPA/As required
Hardness  Full hard/soft/As required
Application  various roofs or walls referring to the large size factory buildings, storages, exhibition halls, gymnasiums etc.

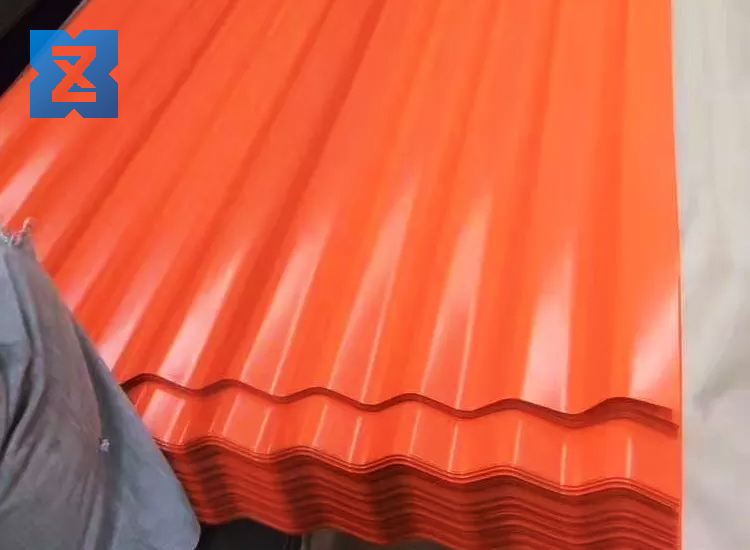

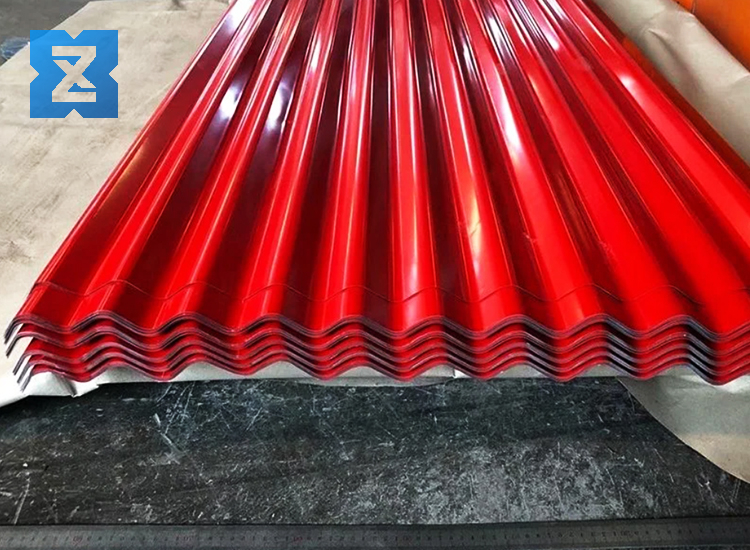

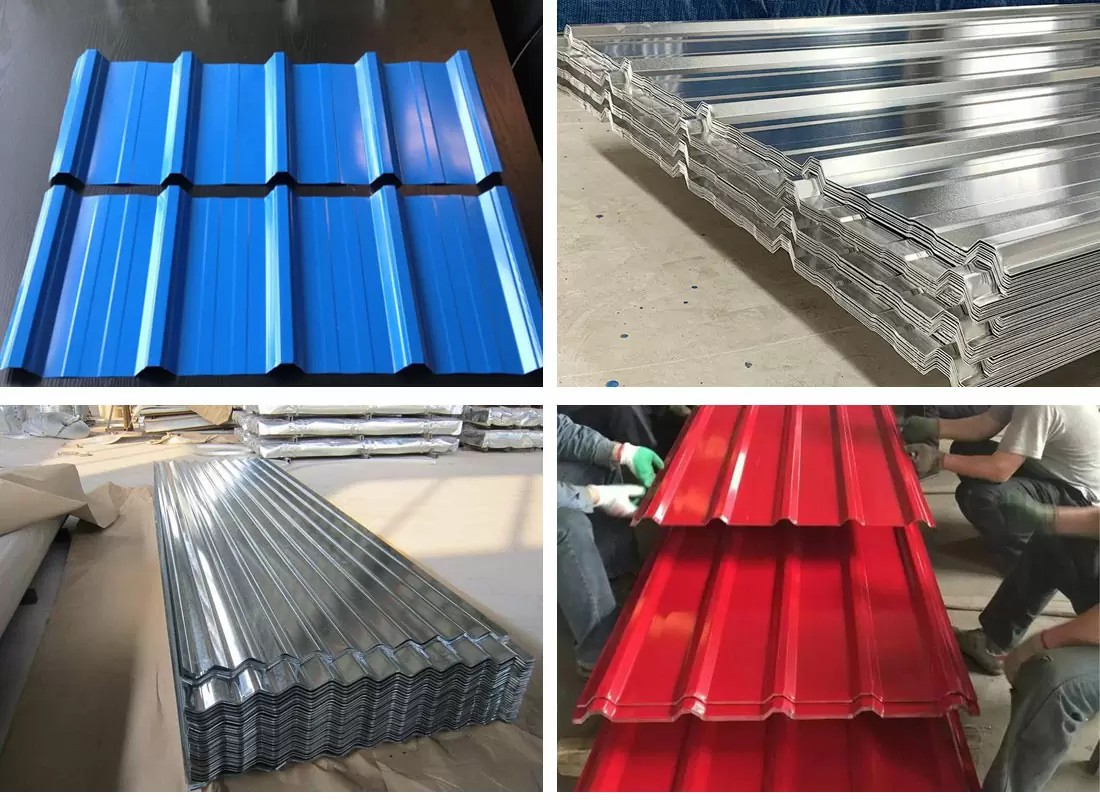

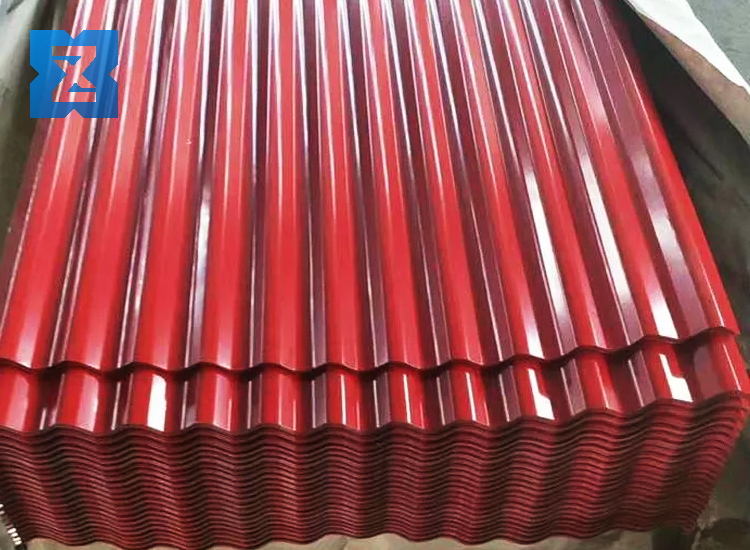

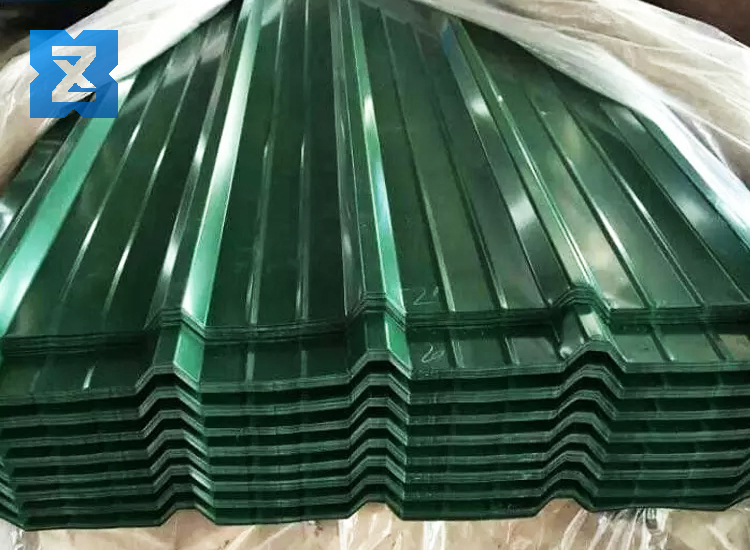

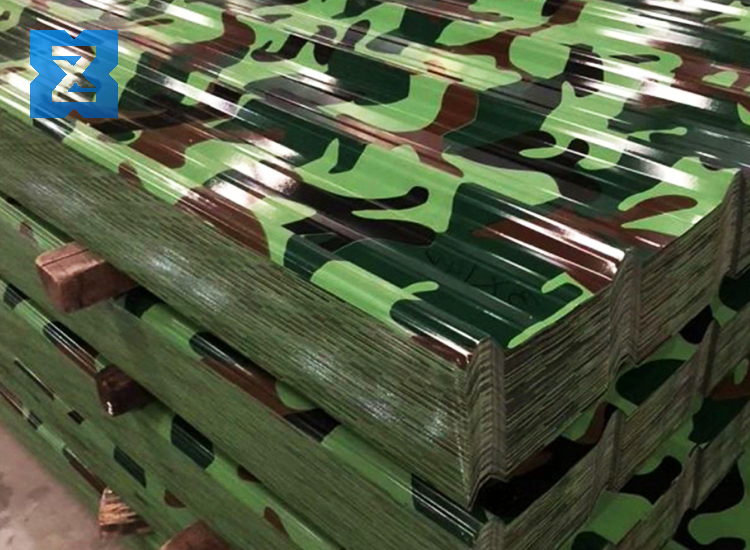

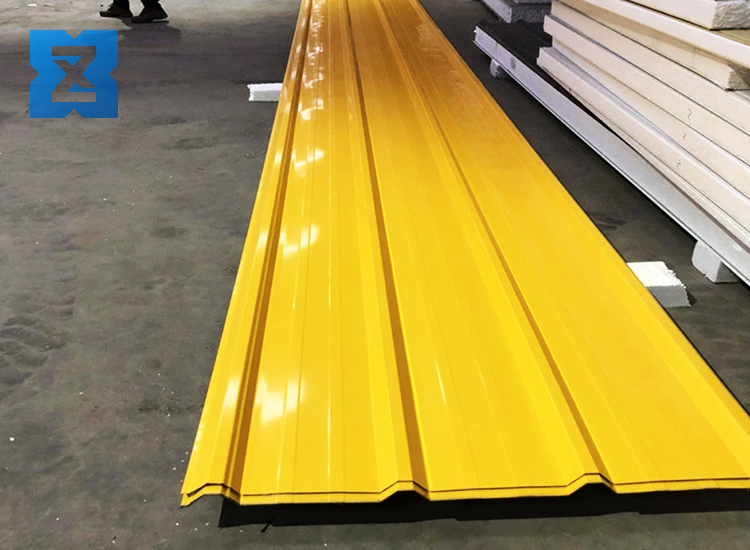

◉ Product Show


◉ FAQ

How long is your delivery time?
Our daily inventory is more than 6000 tons, so for common product size, just need 5-7 work days from stocks; if the special size from new production, delivery 15-21 days.
How many countries you already exported?
Our products are widely used more than 60 countries already mainly from Vietnam, Indonesia, Thailand, UAE, Iran, Saudi Arabia, Russia, Australia, Germany, UK, Moldova, Italy, Turkey, Chile, Uruguay, Paraguay, Mexico, Brazil, Argentina, Peru, America, Canada etc.
What’s your supported standard of products?
We can supply BG/T; ASTM; EN/DIN; JIS and other common standards products. Customers can name their requests and we can supply accordingly.
What’s your supported measurement and size?
For sheets and coils, we can support sizes in gauge, mm and inch/feet For pipes, we can support mm, SCH and DN
What cash do you take?
We can accept USD and RMB for now
What’s your payment term?
T/T, T/T + L/C, Paypal, etc.
What’s your incoterm?
FOB, CIF, DDP and other incoterm the customers named.
What’s your policy with dealers and wholesalers?
We have yearly plan for such customers and need to negotiate personally
